Technical Specification
- Pure sine wave inverter with a maximum input power of 7.2kW for the 3.6kW model, 9kW for the 6kW model, 10kW for the 7.2kW model, 12kW for the 8kW model, 15kW for the 10kW model, and 18kW for the 12kW model.
- MPPT charge controller feature.
- Bi-directional inverter that can rapidly charge the external batteries.
SM3.6kWLLL65 / SM3.6kWPLL65

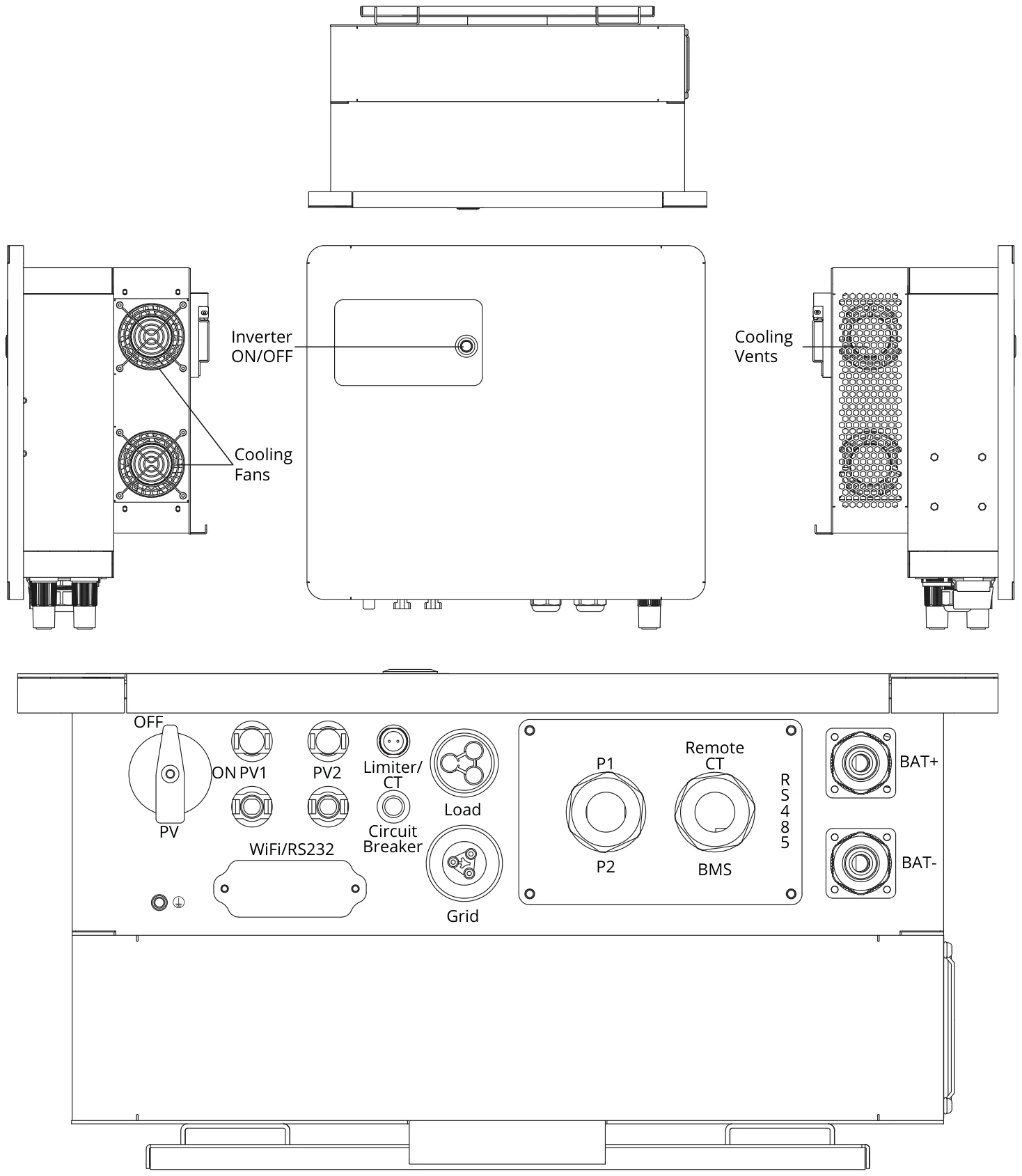

SM6.0kWLLL65 / SM6.0kWPLL65

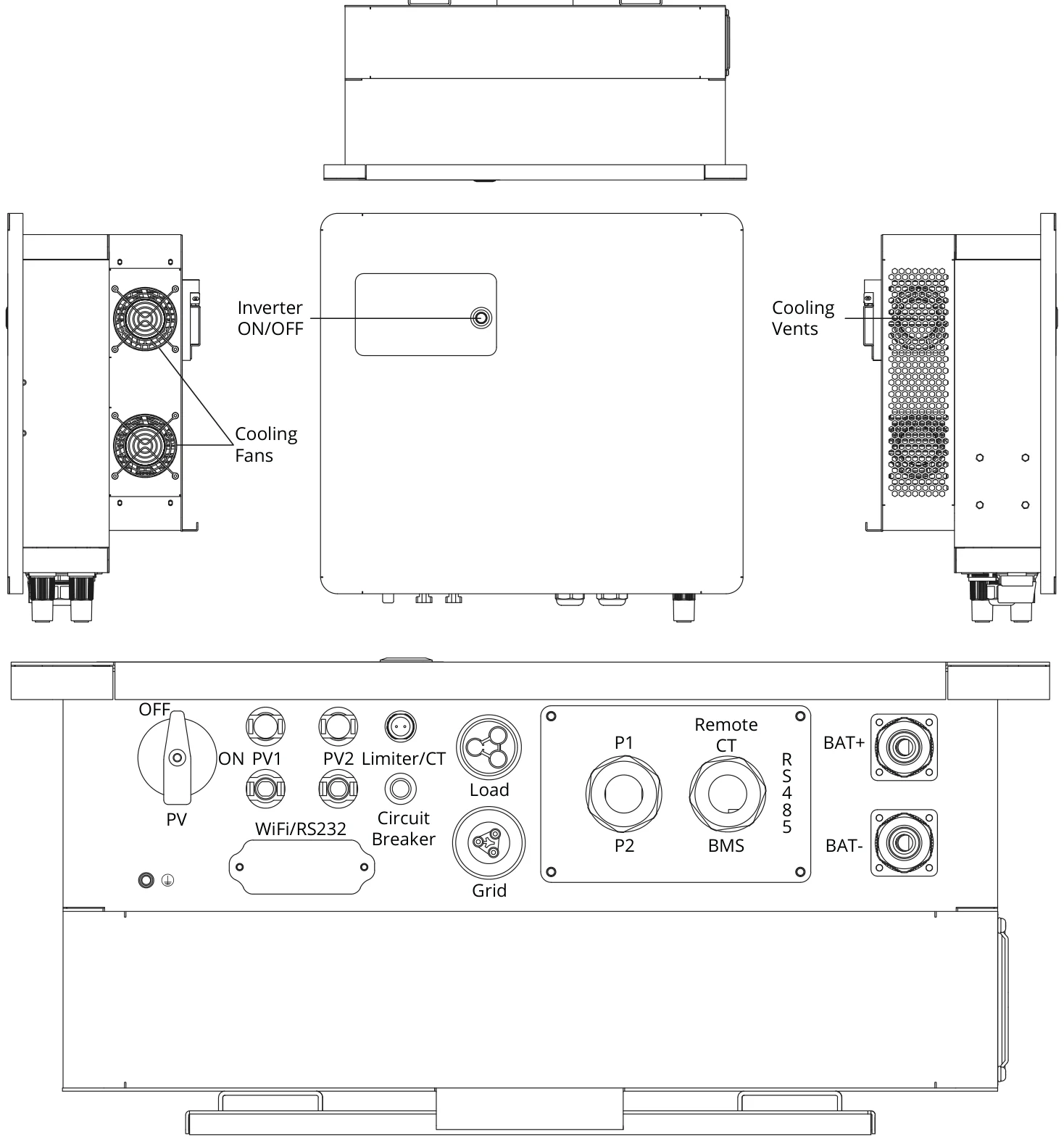

SM7.2kWLLL65 / SM7.2kWPLL65 and SM8.0kWLLL65 / SM8.0kWPLL65

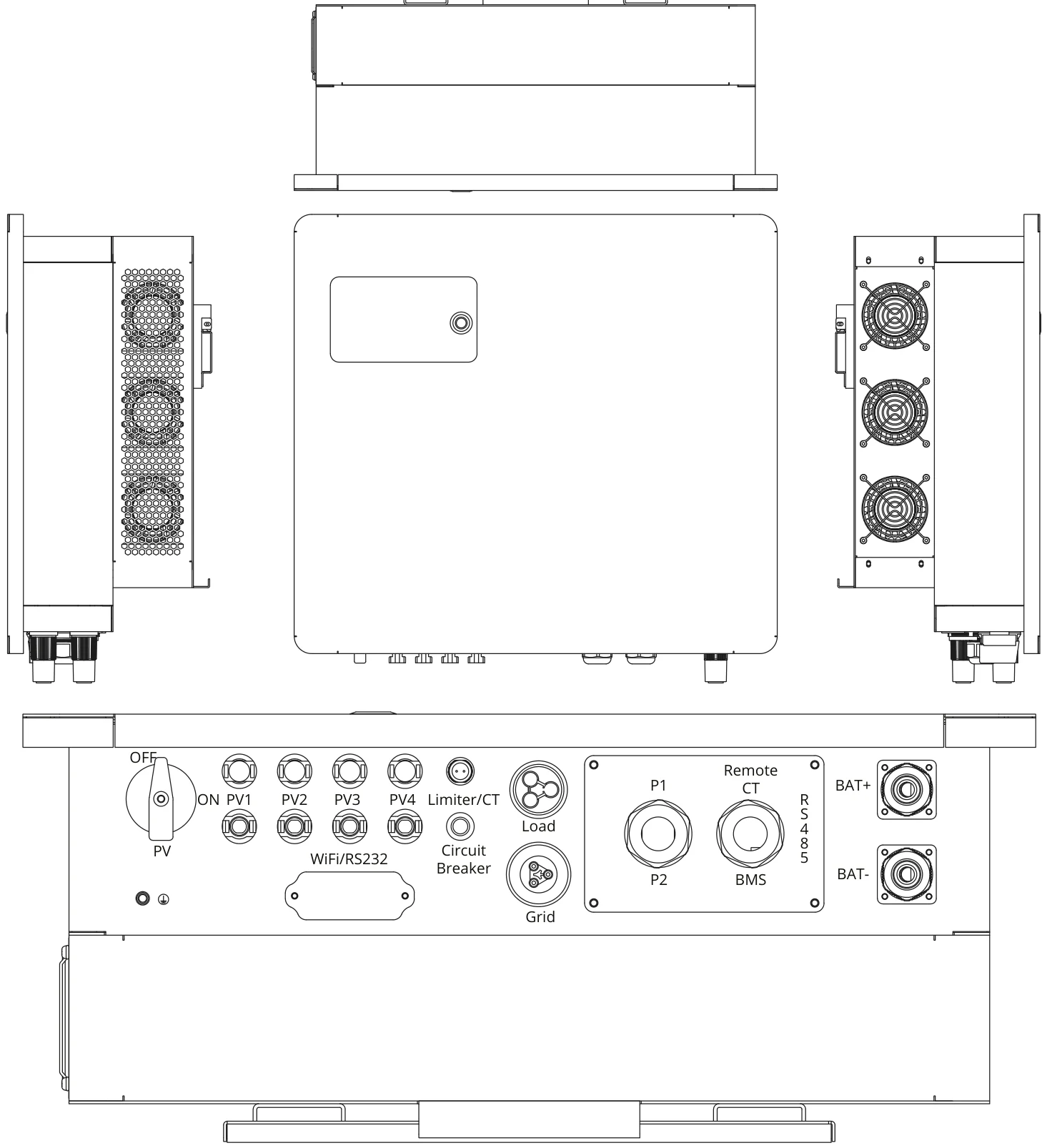

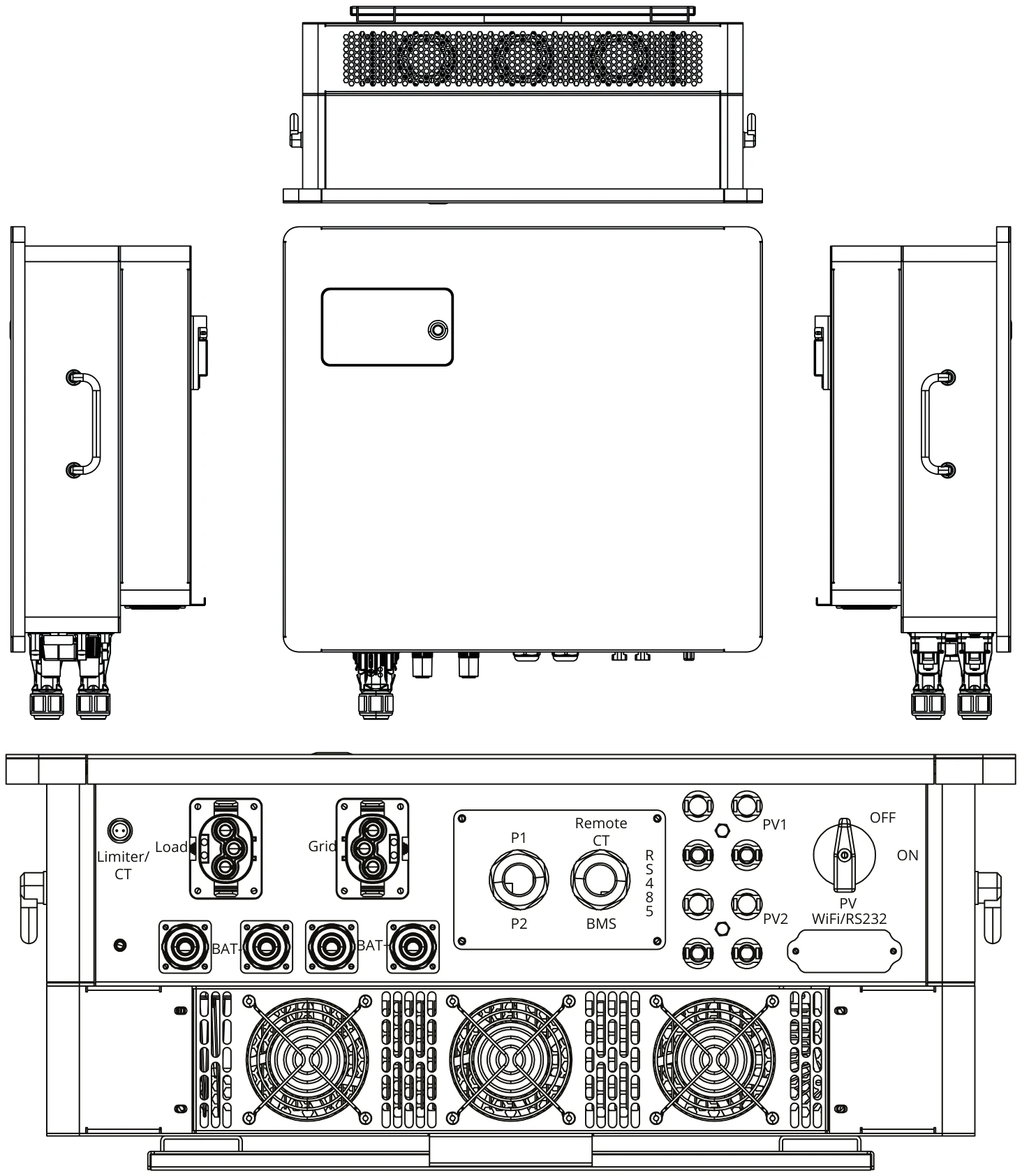

SM10.0kWLLL65 / SM10.0kWPLL65 and SM12.0kWLLL65 / SM12.0kWPLL65
| Model | SM(X.X)kWLLL65 / SM(X.X)kWPLL65 | |||||
|---|---|---|---|---|---|---|
| 3.6 | 6.0 | 7.2 | 8.0 | 10.0 | 12.0 | |
| Battery Input Parameters | ||||||
| Supported Battery Type | LiFePO4 or Lead-Acid | |||||
| Battery Input Voltage Range | 40~60V | |||||
| Max. Charge Voltage | 60V (Configurable) | |||||
| Max. Charge Current (Configurable) | 60A | 120A | 135A | 150A | 180A | 220A |
| Max. Discharge Current (Configurable) | 80A | 130A | 165A | 180A | 220A | 260A |
| Battery Capacity (Recommended) | 100~2000Ah | |||||
| Charge for LiFePO4 Battery Pack | Communicating with BMS of the Battery Pack | |||||
| PV String Input Parameters | ||||||
| Max. DC Input Power | 7200W | 9000W | 10000W | 12000W | 15000W | 18000W |
| DC Input Voltage | 500V | |||||
| MPPT Voltage Range | 120~450V | |||||
| Start-Up Voltage | 150V | |||||
| Max. Input Current | 15A x 2 = 30A (2 MPPT Channels) | 18A x 2 = 36A (2 MPPT Channels) | 23A x 2 = 46A (2 MPPT Channels) | 28A x 2 = 56A (2 MPPT Channels) | 30A x 2 = 60A (2 MPPT Channels) | |
| AC Output Parameters (Back-Up)(Feed to Essential Load) | ||||||
| Max. Output Power | 3600W | 6000W | 7200W | 8000W | 10000W | 12000W |
| Max. Output Apparent Power | 3600VA | 6000VA | 7200VA | 8000VA | 10000VA | 12000VA |
| Peak Output Apparent Power | 7200VA | 12000VA | 14400VA | 16000VA | 20000VA | 24000VA |
| Max. Output Current | 16A | 27A | 33A | 36A | 45A | 55A |
| Nominal Output Voltage | 220/230/240Vac Single-Phase (Configurable) | |||||
| Nominal Output Frequency | 50/60Hz (+/-0.2%) (Configurable) | |||||
| Max. Bypass Current | 40A | 42A | 63A | |||
| Shift Time (Bypass and Inverter) | 10ms | |||||
| Output THDv (Resistor Load) | <3% | |||||
| AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load) | ||||||
| Max. Input Power (Bypass to Essential Load/Charge the Battery) | 3600W | 6000W | 7200W | 8000W | 10000W | 12000W |
| Max. Output Power (Feed to Home Load) | 3600W | 6000W | 7200W | 8000W | 10000W | 12000W |
| Max. Apparent Input Power (Bypass to Essential Load/Charge the Battery) | 3600VA | 6000VA | 7200VA | 8000VA | 10000VA | 12000VA |
| AC Input Parameter (On-Grid)(Bypass to Essential Load & Charge the Battery/Feed to Home Load) | ||||||
| Max. Apparent Output Power (Feed to Home Load) | 3600VA | 6000VA | 7200VA | 8000VA | 10000VA | 12000VA |
| Nominal Input/Output Voltage | 220/230/240Vac Single-Phase (Auto Adjusted to Fit Home Grid) | |||||
| Nominal Input/Output Frequency | 50/60Hz (Auto Adjusted to Fit Home Grid) | |||||
| Max. Bypass Current | 40A | 42A | 63A | |||
| Shift Time (Bypass and Inverter) | 10ms | |||||
| Efficiency | ||||||
| Max. Efficiency | 97.6% | |||||
| Max. Battery to Load Efficiency | 94.0% | |||||
| Europe Efficiency | 97.6% | |||||
| MPPT Efficiency | 99.9% | |||||
| Protection | ||||||
| Integrated | Battery Over-Charge Protection, Battery Low-Voltage Protection, Over-Temperature Protection, Output Overload Protection, Output Short Circuit Protection, Output Over-Voltage Protection | |||||
| Compliances | ||||||
| Grid Regulation | Approvals and certifications are subject to change without prior notice. Please confirm the current status with Sunsynk before placing an order. | |||||
| EMC/Safety Regulation | ||||||
| General Information | ||||||
| Operating Temperature Range | -20ºC ~ +50ºC (>35ºC Derating) | |||||
| Protection Degree | IP65 | |||||
| Dimension | 450x435x 230mm | 500x484x 228mm | 550x535x235mm | 620x585x255mm | ||
| Weight | 22kg | 26.5kg | 27kg | 36kg | ||
